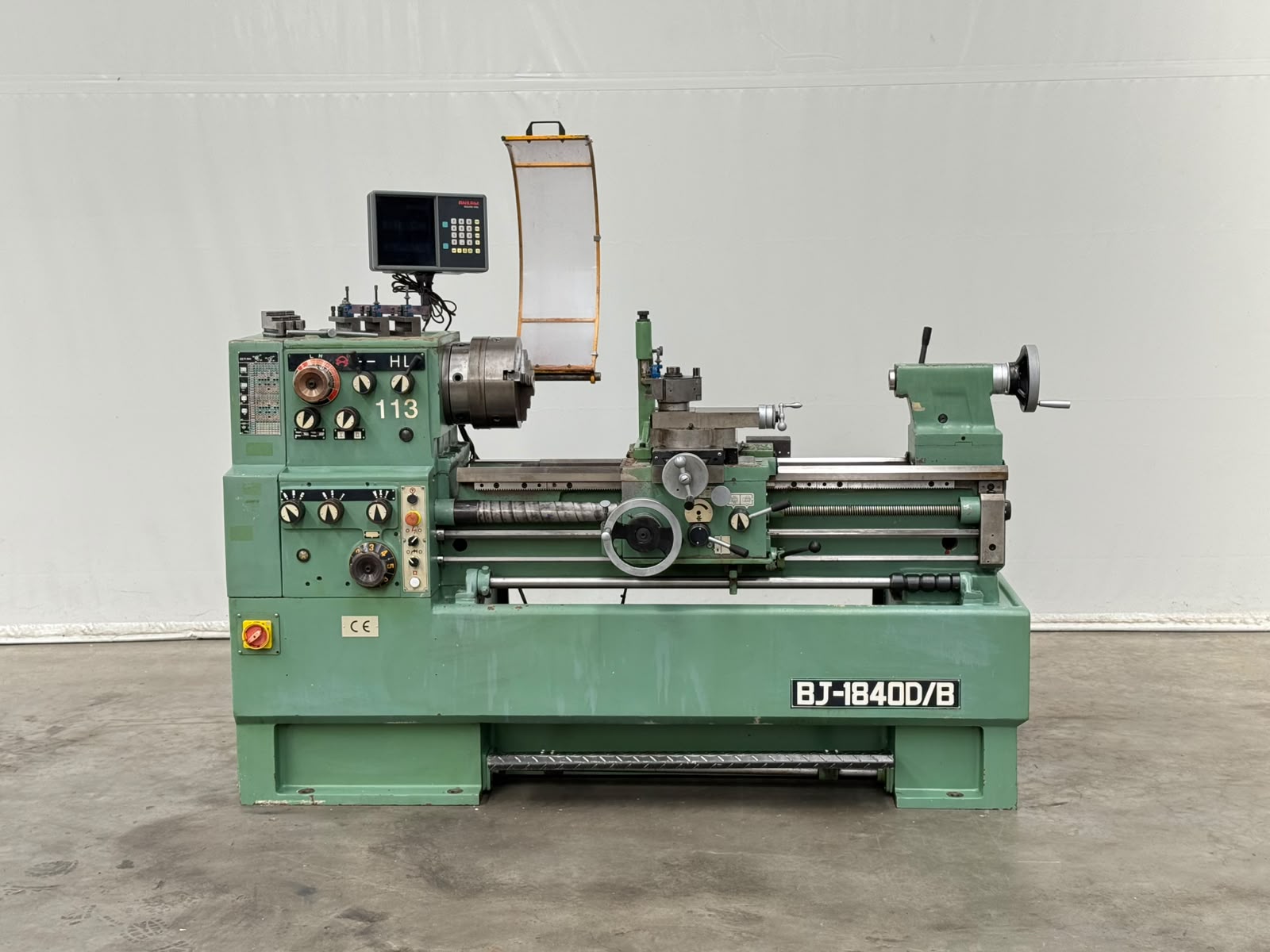

BJ - 1840D/B 460x1.000 (D1082X)
Home | Machines | Lathes | Center lathes |
SPECIFICATIONS
| Brand | BJ |
| Machine no | D1082X |
| Type | 1840D/B 460x1.000 |
| Year of make | 1999 |
| Distance between centers | 1.000 mm |
| Center height | 230 mm |
| Turning diameter above the bed | 460 mm ø |
| Turning diameter above the support | 300 mm ø |
| Turning diameter in the bag | 650 mm ø |
| Passage | 80 mm ø |
| 3-Jaw Chuck | 240 mm ø |
| Quick-change holder | |
| Digital readout | Anilam Wizard 450L |
| Speed | 32 - 1.600 RPM |
| Voltage 380V | |
| Safety screens | |
| Machine size (lxwxh) | 2.100 x 1.000 x 1.700 mm |
| Machine weight | 1.750 kg |
The digital readout for the longitudinal axis is not working.
The digital readout for the cross axis is working.
MACHINE BROCHURE
