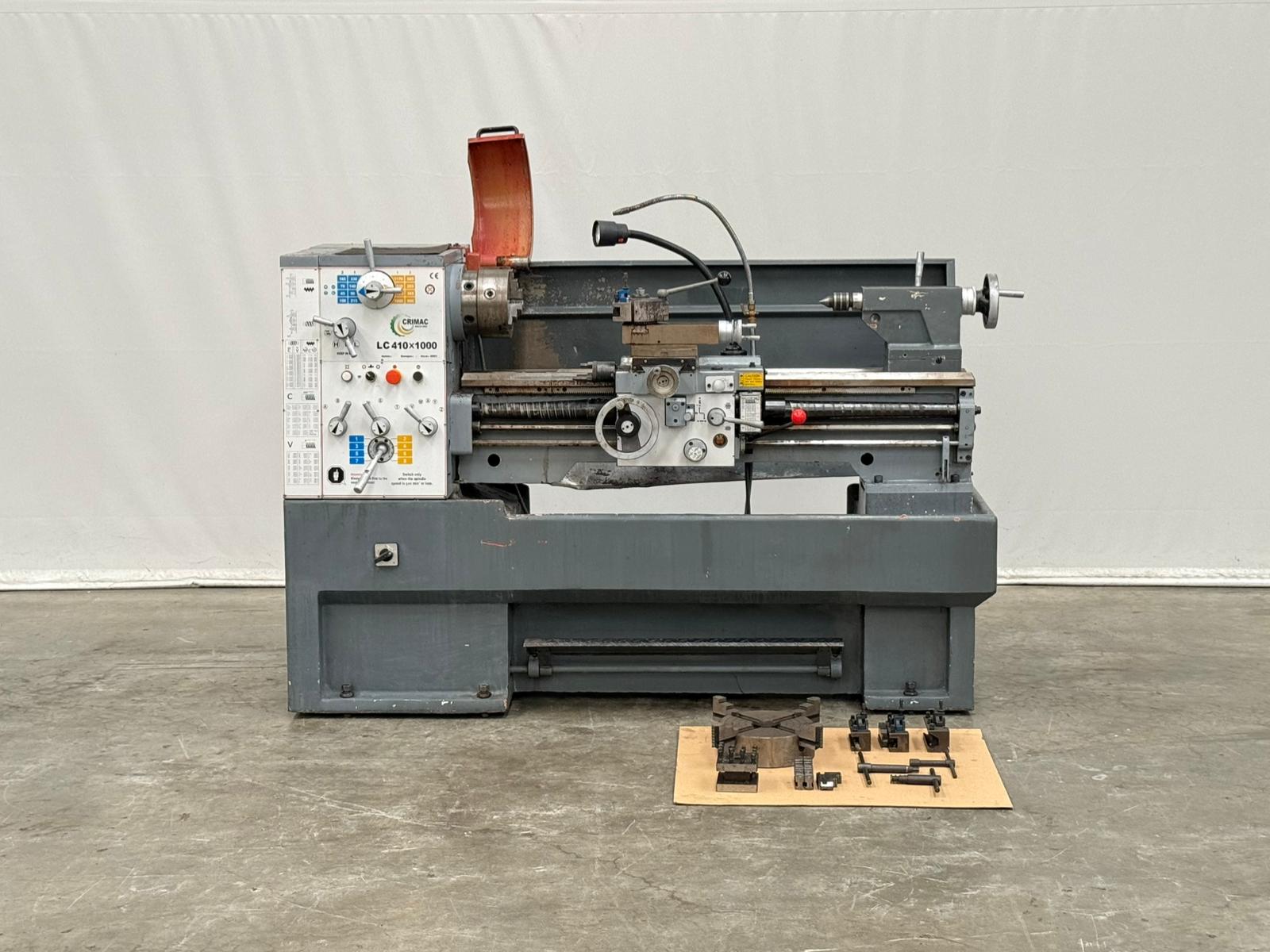

Crimac - LC 410x1000 (D1063)
Home | Machines | Lathes | Center lathes |
SPECIFICATIONS
| Brand | Crimac |
| Machine no | D1063 |
| Type | LC 410x1000 |
| Year of make | 2011 |
| Distance between centers | 1.000 mm |
| Center height | 205 mm |
| Turning diameter above the bed | 410 mm ø |
| Turning diameter above the support | 240 mm ø |
| Turning diameter in the bag | 500 mm ø |
| Passage | 52 mm ø |
| 3-Jaw Chuck | 200 mm ø |
| 4-Jaw Chuck | 250 mm ø |
| Quick-change holder | |
| Speed | 45 - 1.800 RPM |
| Voltage 380V | |
| Machine size (lxwxh) | 2.000 x 900 x 1.400 mm |
| Machine weight | 1.500 kg |
