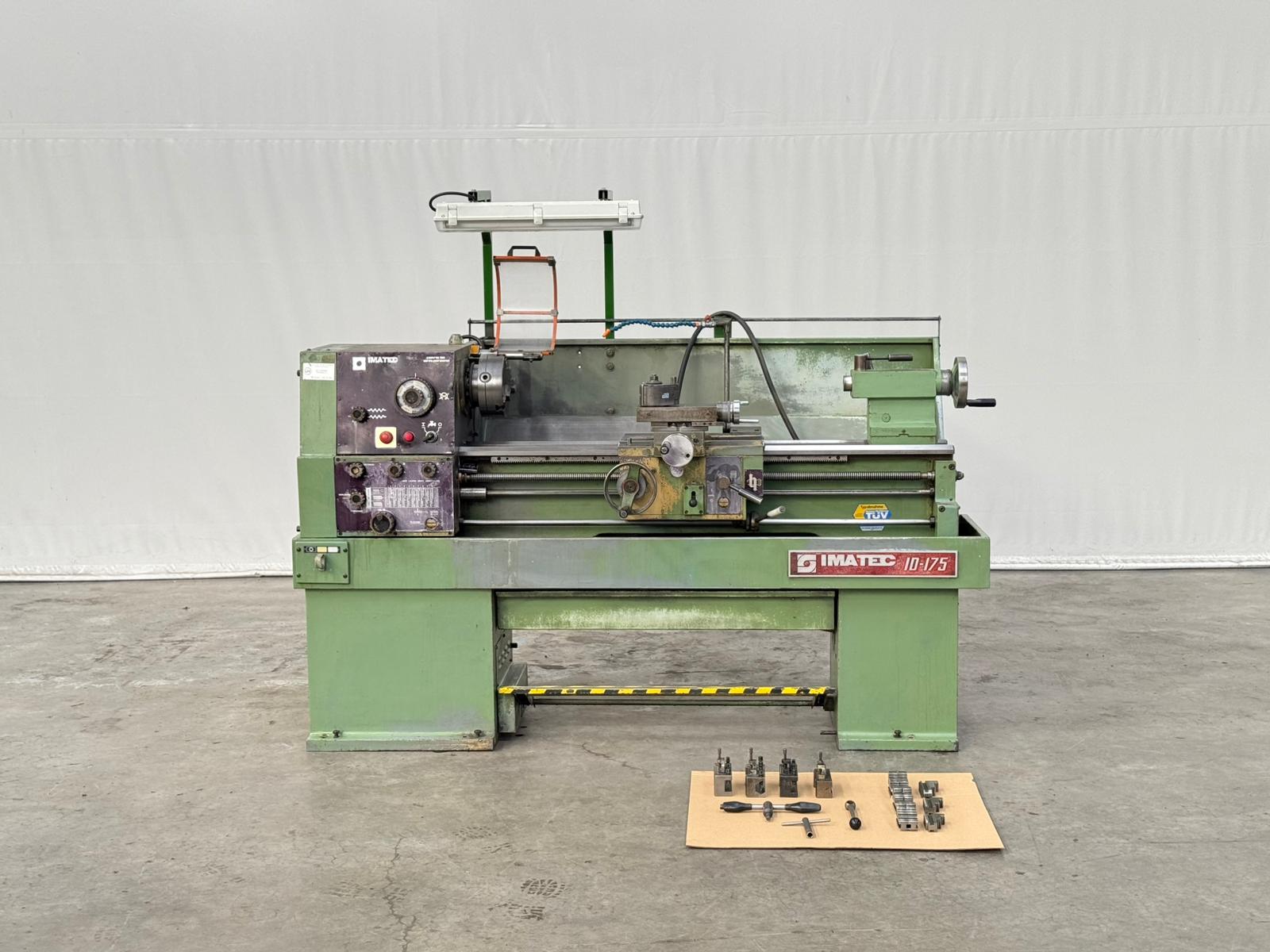

Imatec - ID-175 (D1053)
Home | Machines | Lathes | Center lathes |
SPECIFICATIONS
| Brand | Imatec |
| Machine no | D1053 |
| Type | ID-175 |
| Distance between centers | 1.000 mm |
| Center height | 175 mm |
| Turning diameter above the bed | 350 mm ø |
| Turning diameter above the support | 240 mm ø |
| Passage | 41 mm ø |
| 3-Jaw Chuck | 200 mm ø |
| Quick-change holder | |
| Speed | 75 - 1.600 RPM |
| Voltage 380V | |
| Machine size (lxwxh) | 2.200 x 1.100 x 1.750 mm |
| Machine weight | 1.200 kg |
