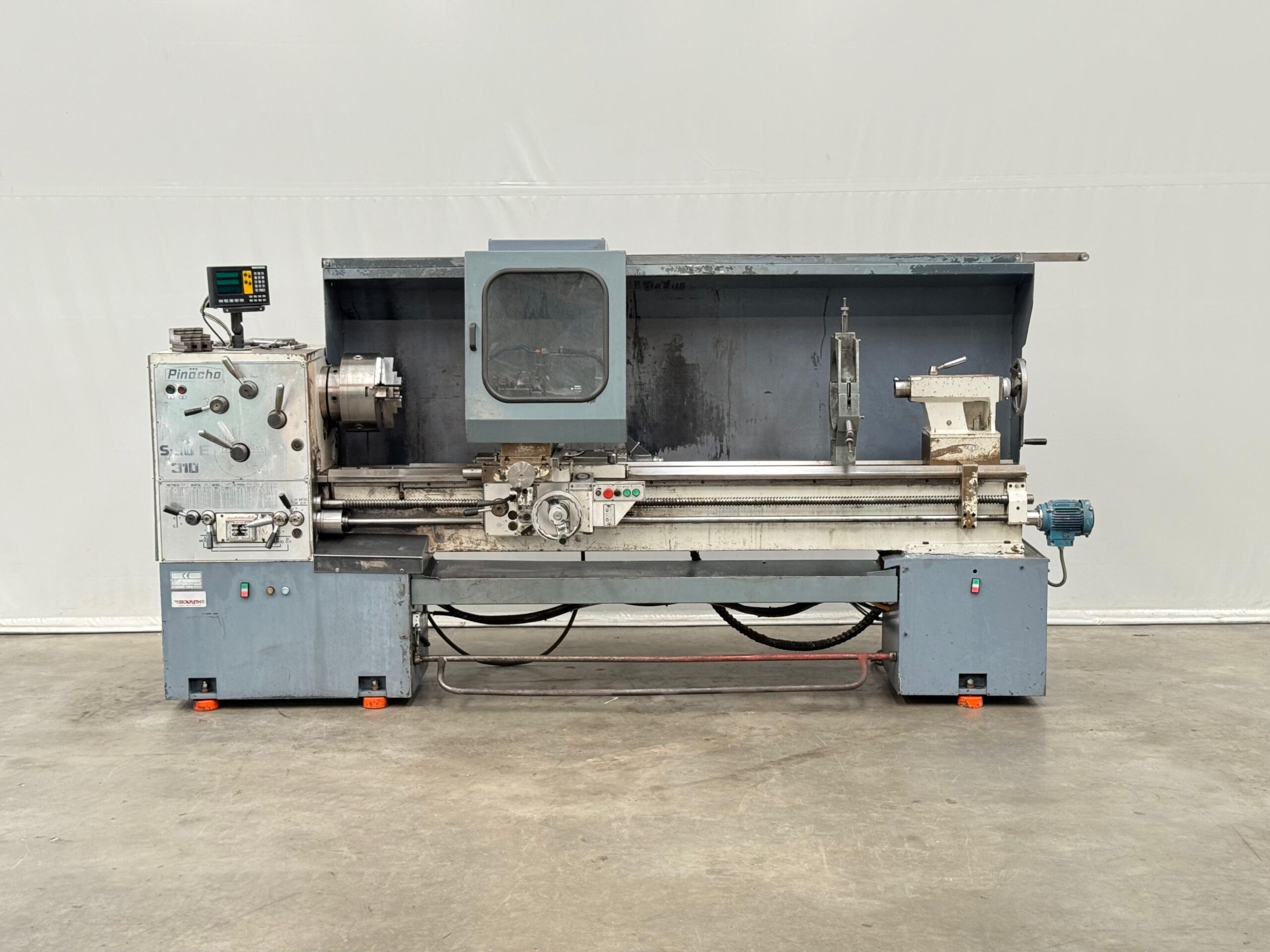

Pinacho - S-90 E 310 (D1037)
Home | Machines | Lathes | Center lathes |
SPECIFICATIONS
| Brand | Pinacho |
| Machine no | D1037 |
| Type | S-90 E 310 |
| Distance between centers | 2200 mm |
| Center height | 310 mm |
| Turning diameter above the bed | 620 mm ø |
| Turning diameter above the support | 400 mm ø |
| Turning diameter in the bag | 880 mm ø |
| Passage | 80 mm ø |
| Fixed glasses | 300 mm ø |
| 3-Jaw Chuck | 300 mm ø |
| Quick-change holder | |
| Digital readout | |
| Rapid on the support | |
| Speed | 45 - 1.600 RPM |
| Voltage 380V | |
| Machine size (lxwxh) | 3.700 x 1.100 x 1.800 mm |
