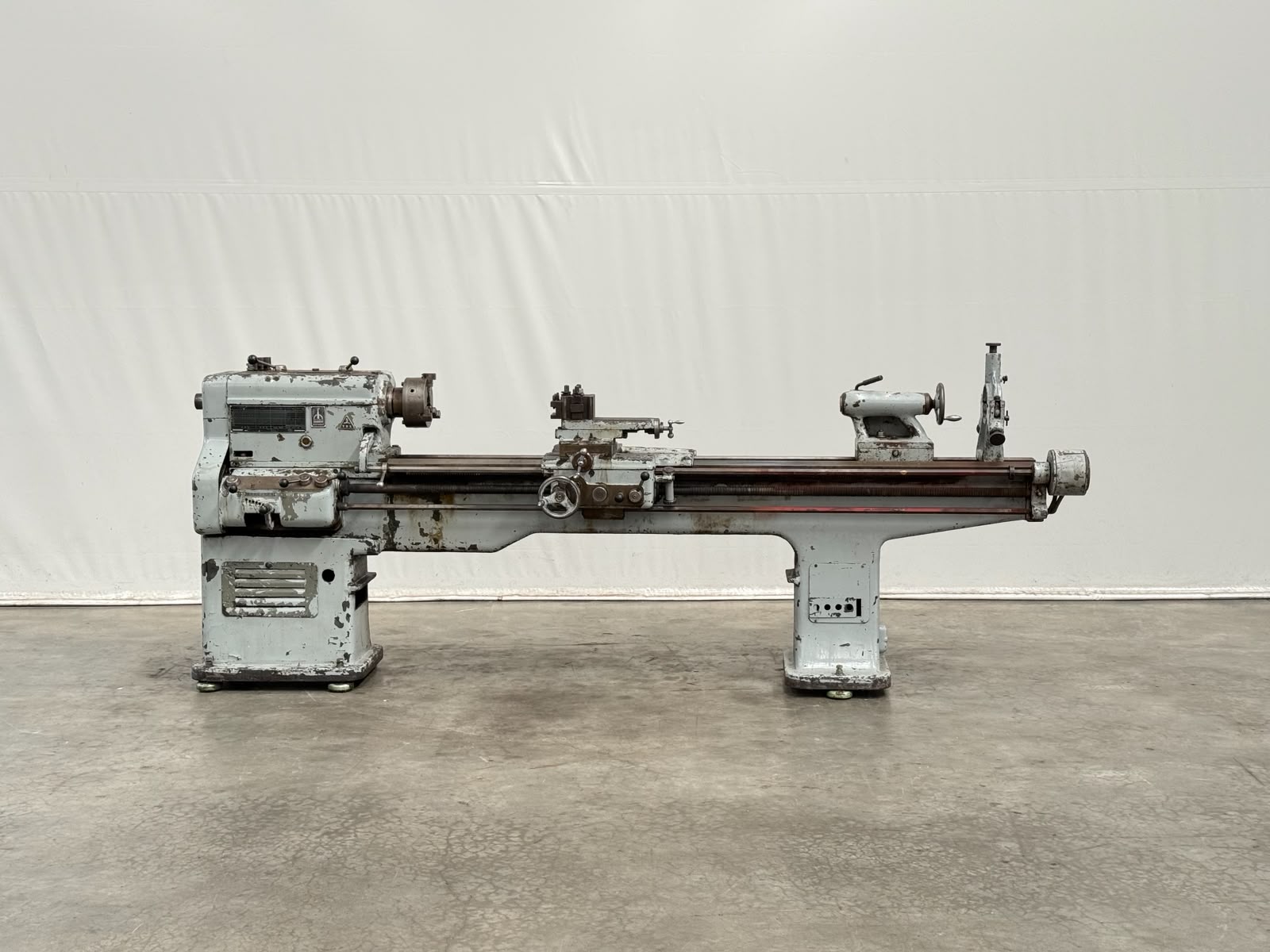

Tos - 460x2.000 (D1077)
Home | Machines | Lathes | Center lathes |
SPECIFICATIONS
| Brand | Tos |
| Machine no | D1077 |
| Type | 460x2.000 |
| Distance between centers | 2000 mm |
| Center height | 230 mm |
| Turning diameter above the bed | 460 mm ø |
| Turning diameter above the support | 280 mm ø |
| Turning diameter in the bag | 500 mm ø |
| Passage | 51 mm ø |
| Fixed glasses | |
| 3-Jaw Chuck | 200 mm ø |
| Quick-change holder | |
| Speed | 28 - 710 RPM |
| Voltage 380V | |
| Machine size (lxwxh) | 3.500 x 1.200 x 1.400 mm |
| Machine weight | 1.750 kg |
