Tauring - DS60 HV Plus (PR119)
Home | Machines | Bending machine | Profile bending |
SPECIFICATIONS
| Brand | Tauring |
| Machine no | PR119 |
| Type | DS60 HV Plus |
| Year of make | 2011 |
| Output shaft diameter | 50 mm ø |
| Round | 50 x 500 / 55 x 900 mm ø |
| Square | 40x40 x 600 / 50x50 x 1000 mm |
| Strip | 75x30 x 250 / 120x30 x 300 mm |
| Engine power | 4 kW |
| Machine dimensions (L×W×H) | 1.500 x 700 x 1.500 mm |
| Machine weight | 515 kg |

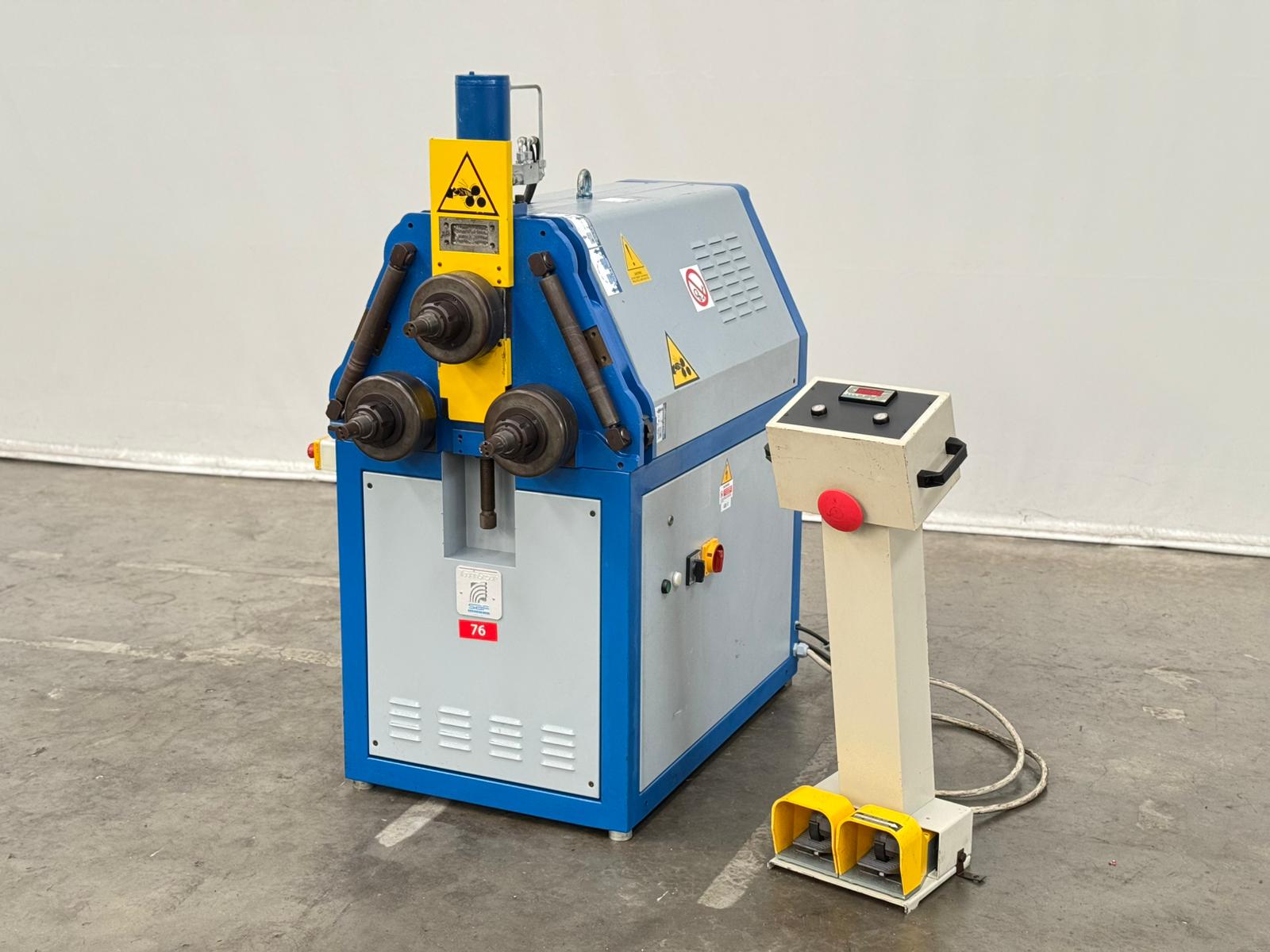

The profile bending machine is equipped with three driven rolls, and the pre-bending is performed hydraulically.
The upper roll is fitted with a digital readout.
Refer to the capacity table for further specifications.
