Bimak - 45 AC/M VAR (BR511)
SPECIFICATIONS
| Brand | Bimak |
| Machine no | BR511 |
| Type | 45 AC/M VAR |
| Capacity | 40 mm ø |
| Table length | 670 mm |
| Table width | 268 mm |
| Spindle taper | MK4 |
| Speed | 65 ~ 1.650 RPM |
| Throat depth | 300 mm |
| Stroke | 150 mm |
| Machine size | 1.350 x 1.200 x 2.000 mm |
| Machine weight | 800 kg |

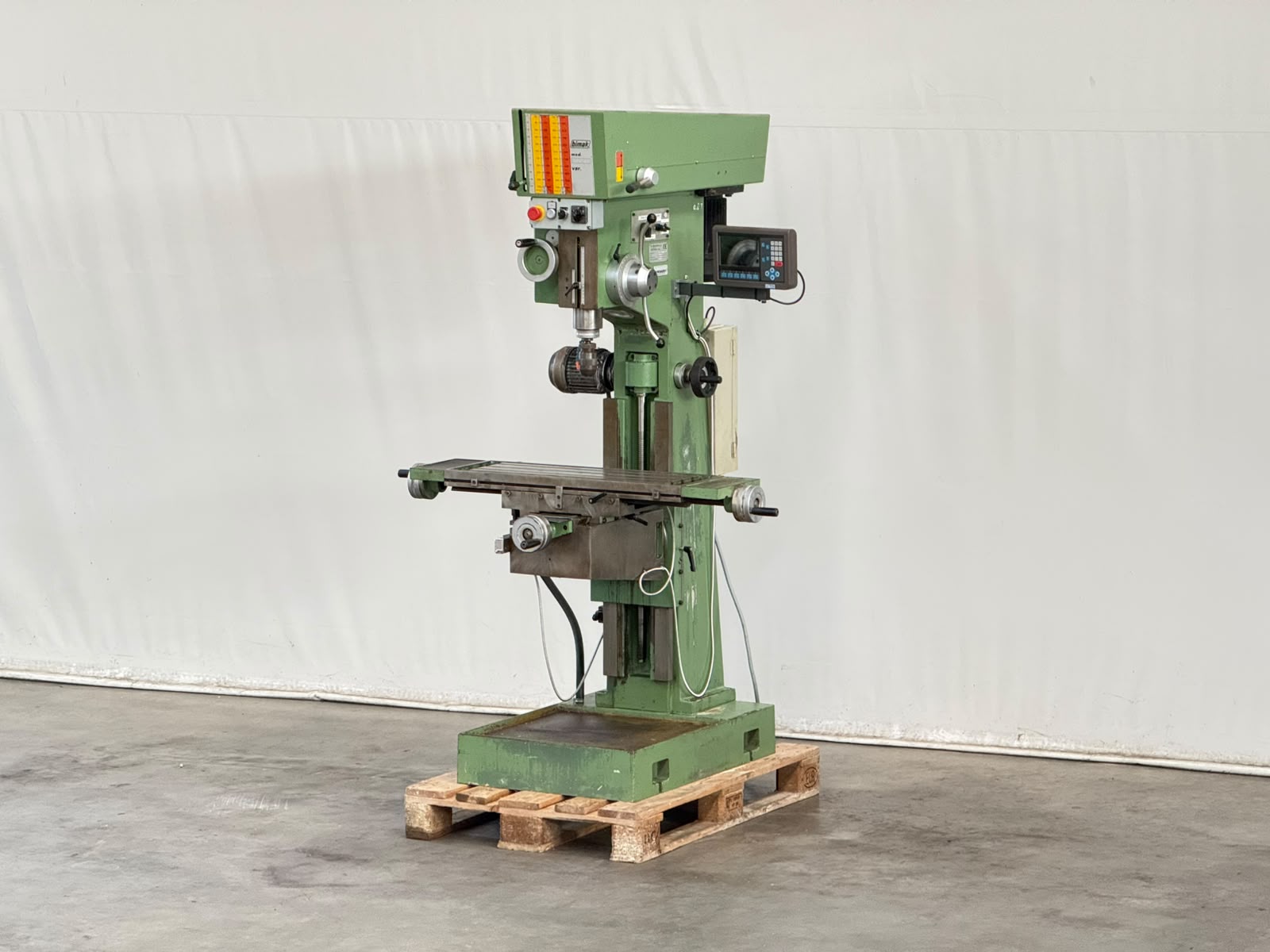

Bimak 45 AC/M Vario R
Pillar drilling machine is equipped with a variable-speed drive and a digital readout on the cross table.
Specifications:
• X-axis travel: 550 mm
• Y-axis travel: 280 mm
• Z-axis travel: 400 mm
• Electrically adjustable table height
• Automatic quill feed
• Cooling pump
MACHINE BROCHURE
