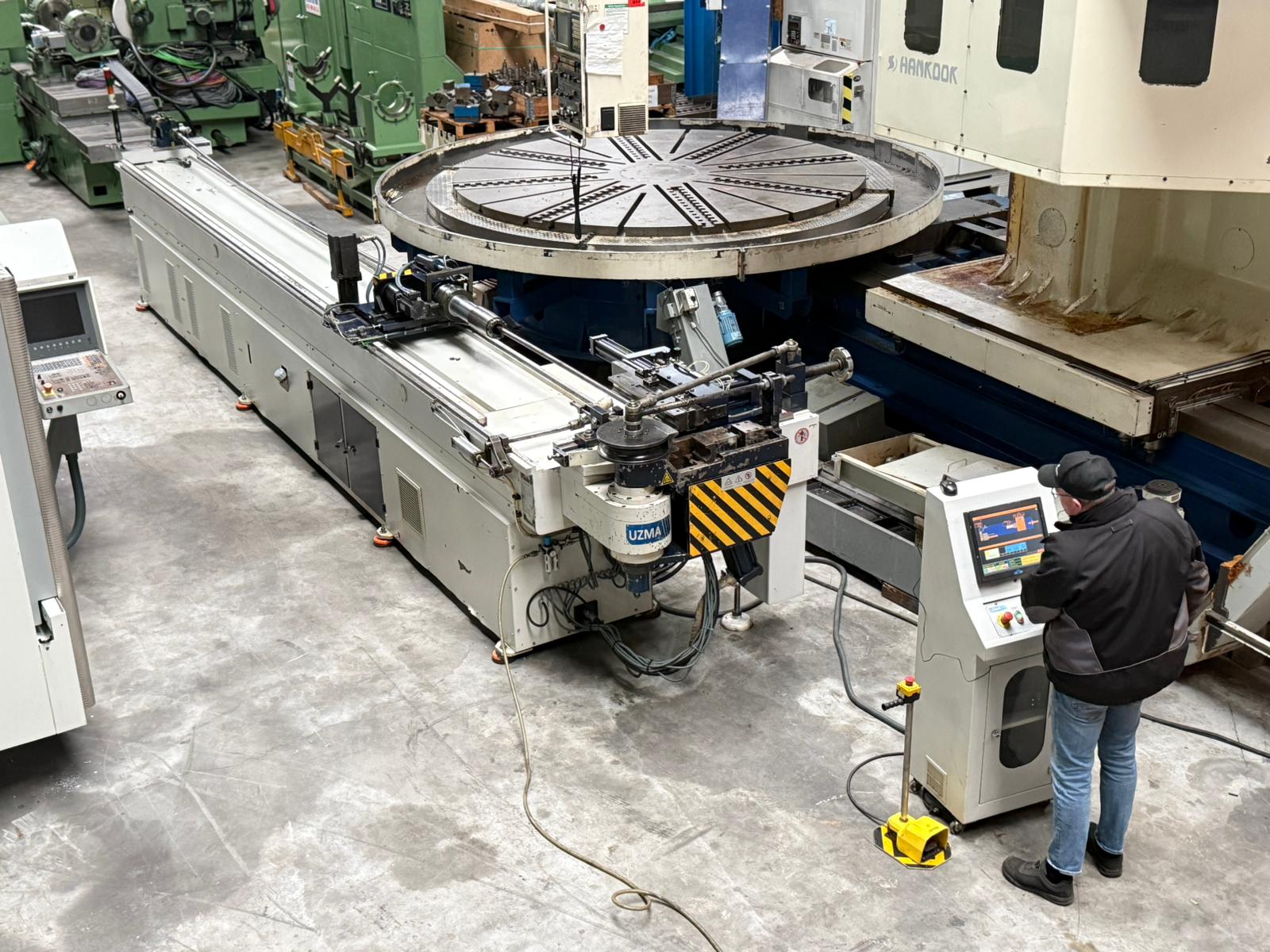

UZMA - UZC 76 (BG180)
SPECIFICATIONS
| Brand | UZMA |
| Machine no | BG180 |
| Type | UZC 76 |
| Year of make | 2010 |
| Mandrel Bending Machine | |
| Digital readout | |
| Capacity up to | 76 mm |
| angle max. | 190 ° |
| Wall thickness | 4 mm |
| Thorn | 35-36-38-40-50 mm ø |
| thorn length | 6.150 mm |
| Foot control | |
| Including various accessories | |
| Machine size (lxwxh) | 7500 x 1850 x 2000 mm |
| Machine weight | 4.500 kg |
The machine is equipped with length and angular positioning.
Length: 6.150 mm – maximum capacity up to 76 mm.
Forming dies:
• 48 mm Ø – R 216 mm
• 42 mm Ø – R 252 mm
• 48 mm Ø – R 300 mm
• 60 mm Ø – R 328 mm
