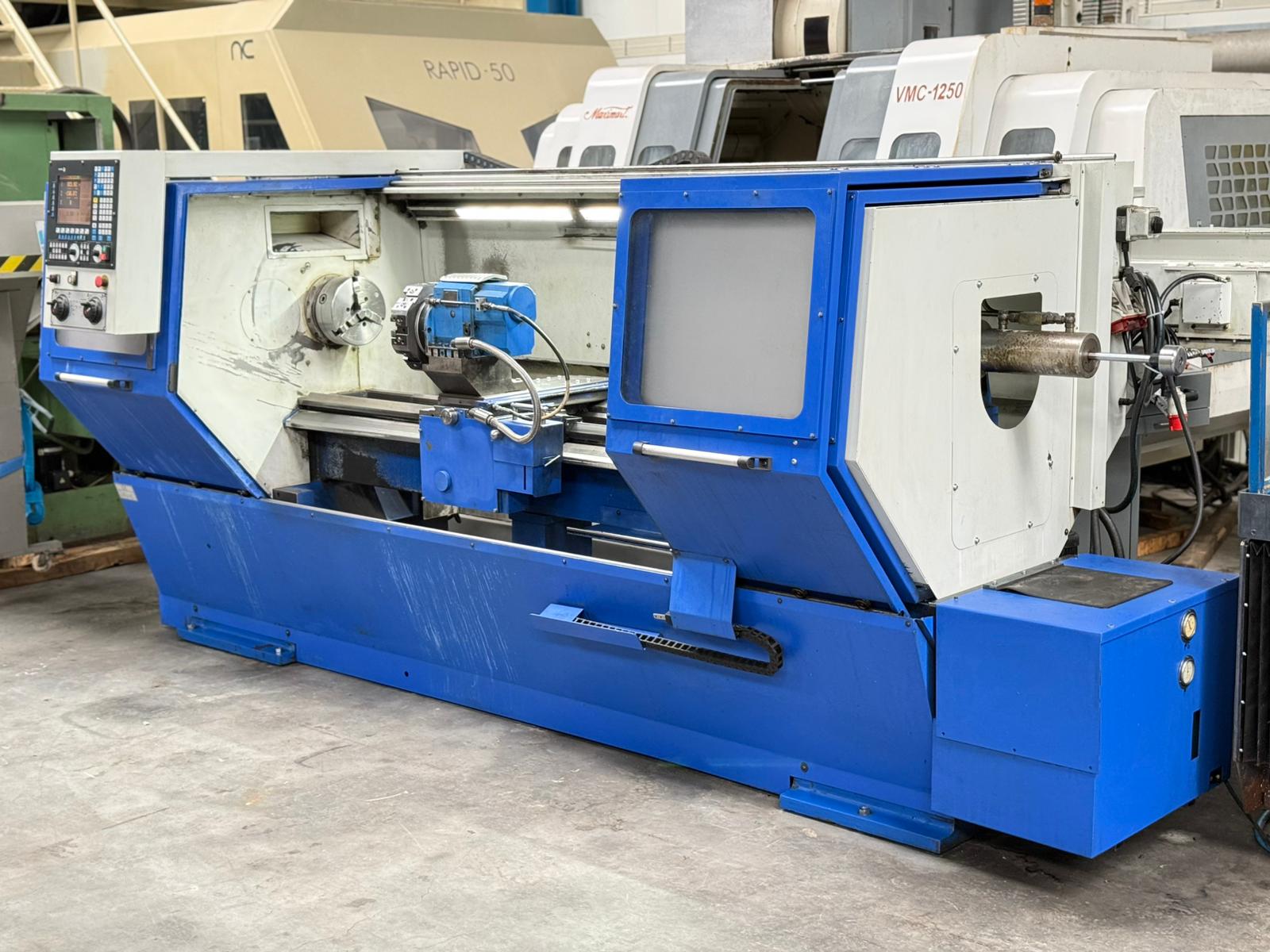

Pinacho - Taurus-SK 310 (D1062)
Home | Machines | Lathes | CNC lathes |
SPECIFICATIONS
| Brand | Pinacho |
| Machine no | D1062 |
| Type | Taurus-SK 310 |
| CNC Brand | Fagor |
| CNC Type | 8055 TC- |
| Year of make | 2006 |
| Teach-in | |
| Distance between centers | 2.100 mm |
| Center height | 310 mm |
| Turning diameter above the bed | 620 mm ø |
| Turning diameter above the support | 400 mm ø |
| Passage | 75 mm ø |
| 3-jaw chuck | 250 mm ø |
| Spindle Speed | 0 ~ 2.500 RPM |
| Machine size (lxwxh) | 4.400 x 2.300 x 1.900 mm |
| Machine weight | 4.000 kg |
Pinächo Taurus-SK 310 Oil Country CNC Lathe
Technical specifications:
• Machine hours: 4.994 hours
• Feed rate: 0–10.000 mm/min
• Rapid traverse: 15 m/min
• Motor power: 11 kW
Equipment:
• 8-position tool turret
• Hydraulic tailstock
• Fixed steady rest
• Chip conveyor
Includes original documentation and operating manuals.
